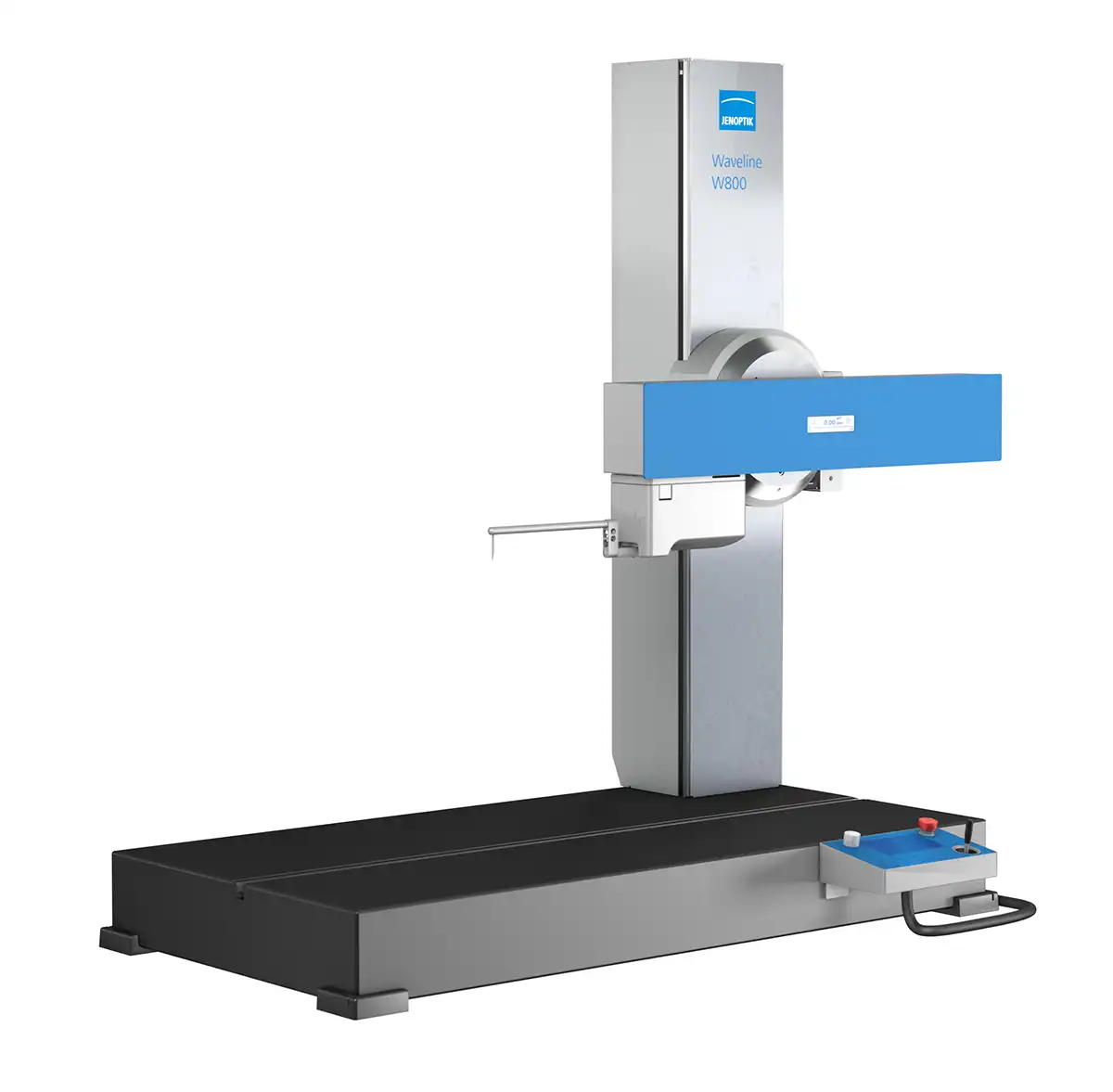

Hommel-Etamic – Waveline W800

The W800 and W900 measuring systems offer highest flexibility for day-to-day measurement applications. The uniform machine concept and modern probe systems follow the modular design which provides various customization options of the measuring station. This way the system can easily be adapted to your specific infrastructure and measurement requirements.

Category: Tags: , , ,
Request a quote
More information

The W800 measuring systems are universal and deliver highly accurate results for a
wide range of measurement tasks. The modular concept means a perfect match to
your requirements and enables subsequent expansion of the measuring system.



Features:

  • Individually customizable
  • Intelligent probe arms
  • Probe systems and arms equipped with magnetic coupling
  • Shorter cycle times thanks to fast axes
  • Modular expansion options

Specifications



Resolution 0.3 nm
Resolution scale (x-axis) 0.1 µm
Tilt range ±45°
Number of probe systems interfaces 1, bottom

Related products

Models

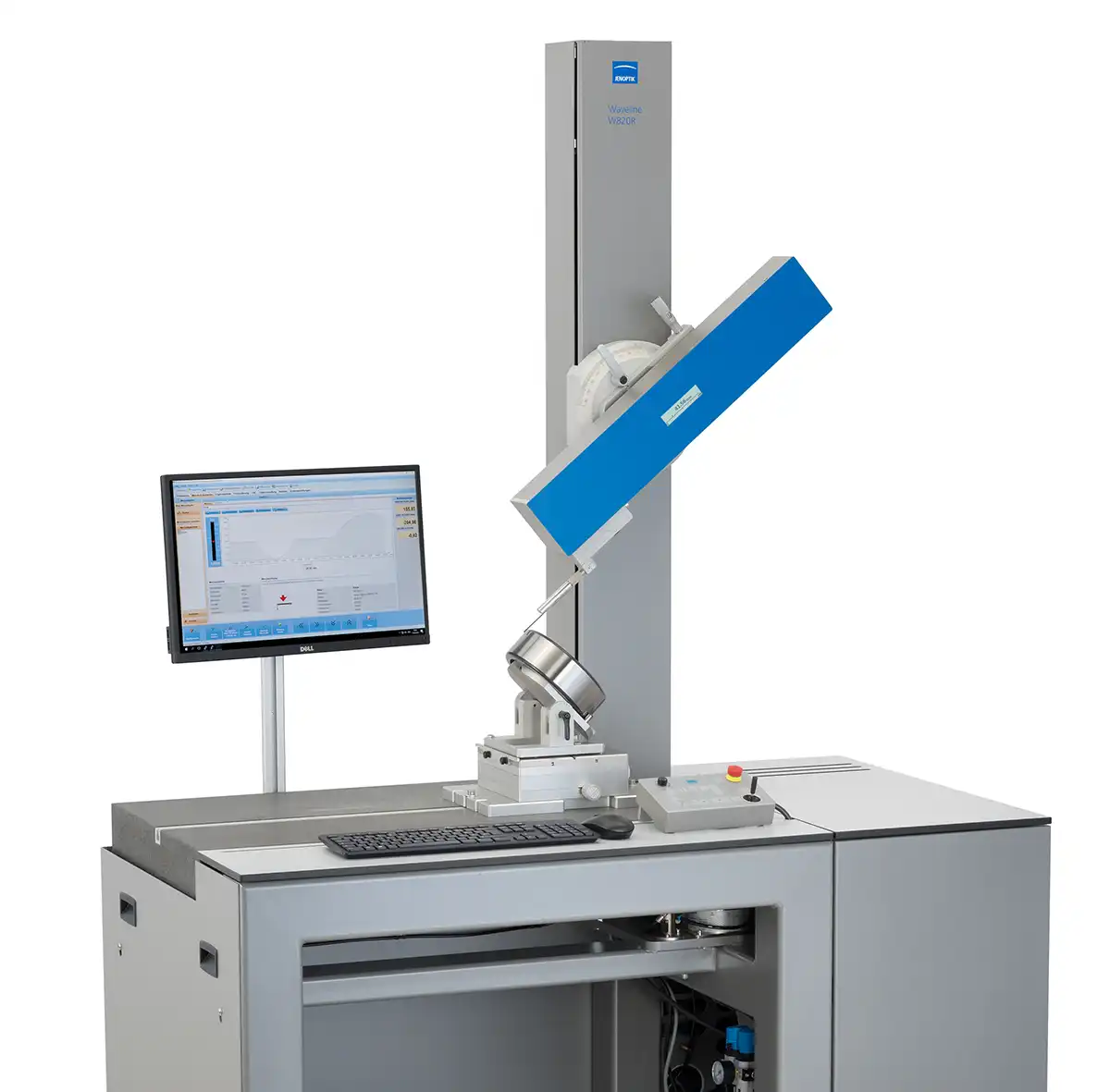

Standard roughness measuring station

W812R / W820R

Standard contour measuring station

W812C / W820C digiscan

Combined roughness and contour measuring station

with separated probe systems

W812RC / W820RC digiscan

Ideal configuration of your measuring system

Four different probe systems with quick-change adapters QCA allow quick and simple system changeovers to
accommodate new measurement tasks. In conjunction with the selected measuring station configuration
and the Evovis software, this means the ideal measurement performance is always achieved.

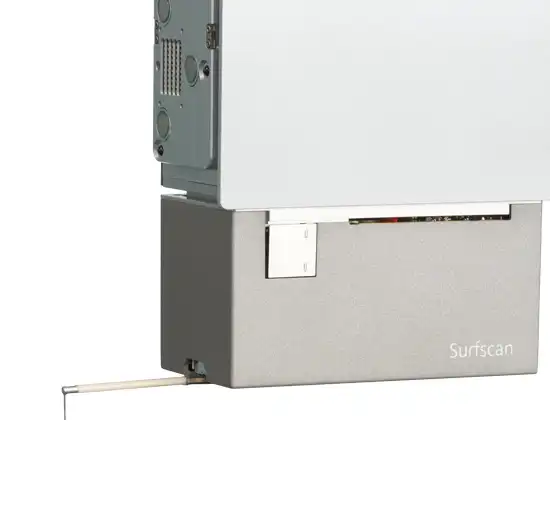

Surfscan

  • Changing of the probe arm without tools
  • Electronic probe arm detection
  • Extendable to top/bottom measuring
  • High-resolution roughness measurement across
    the full measuring range

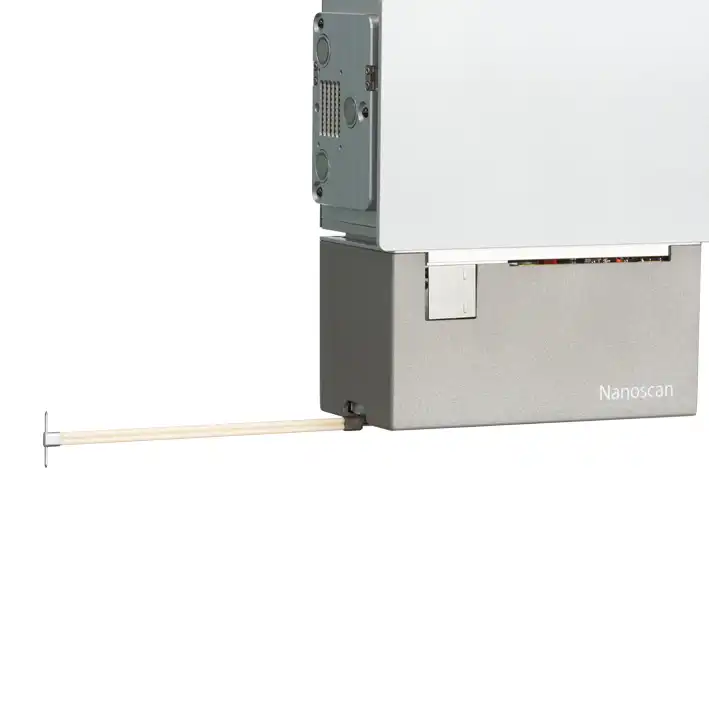

Nanoscan

  • Ultra-precise opto-mechanical probe system
  • Wide measuring range with extremely high resolution
  • Excellent roughness and contour measuring accuracy

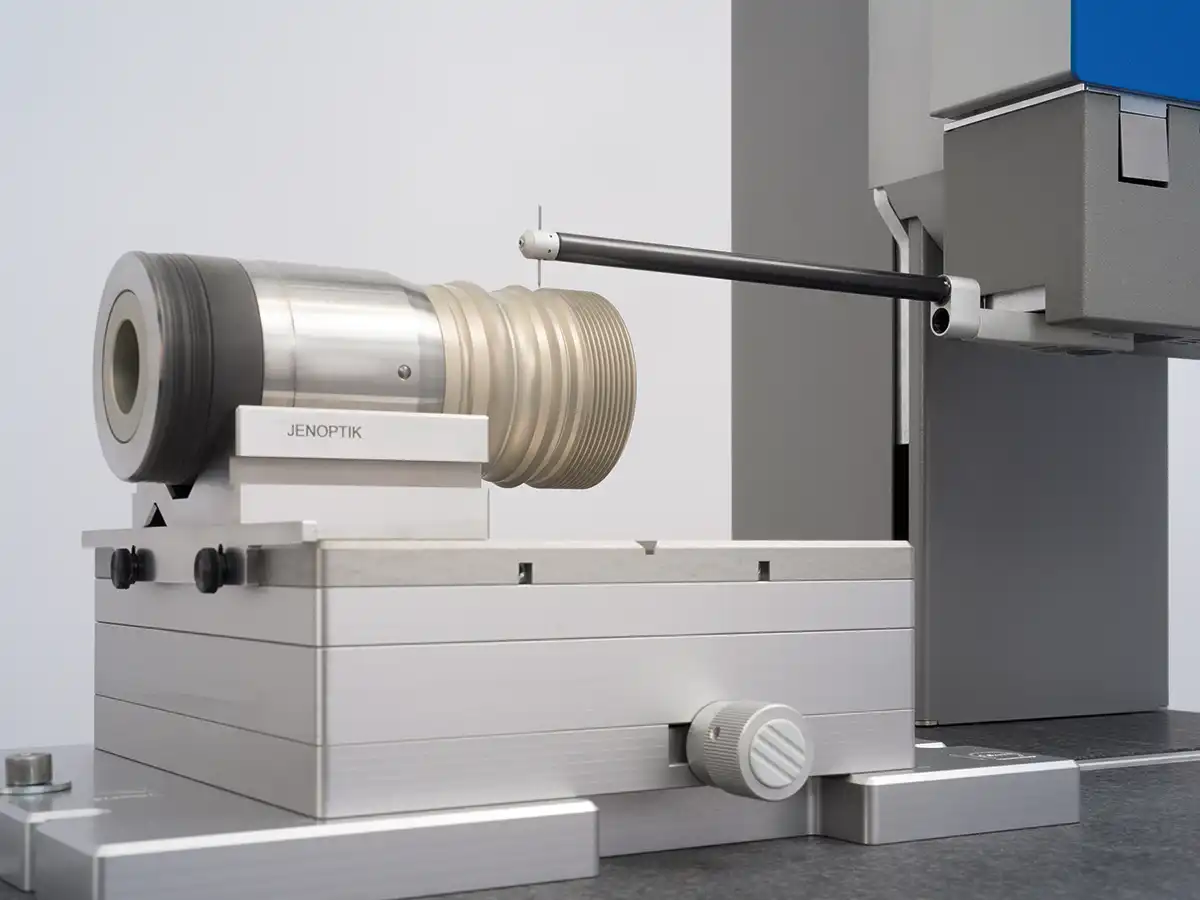

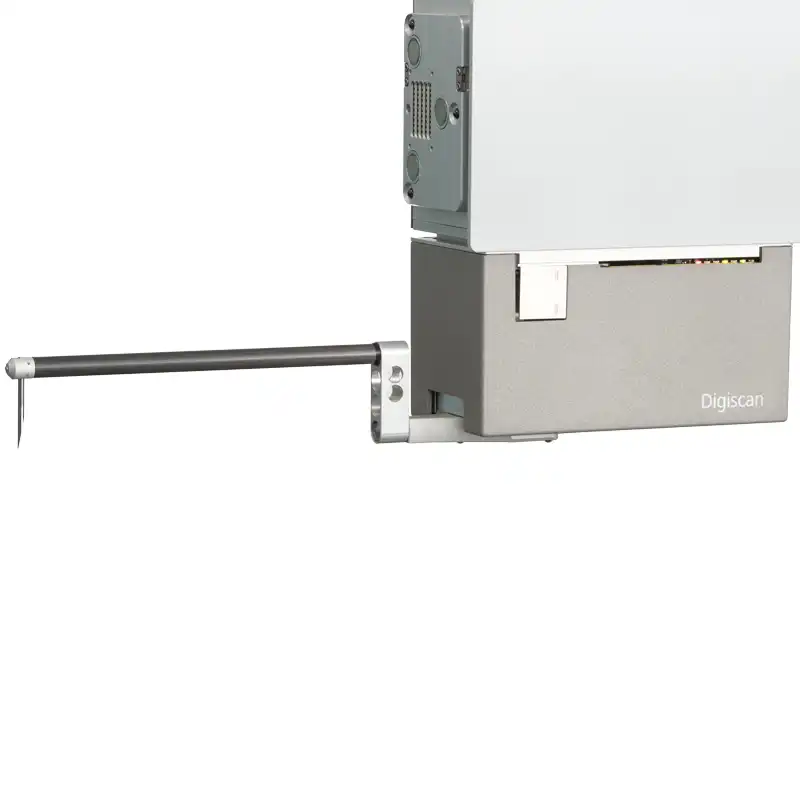

Digiscan

  • Probe arm change without the need for tools
  • Electronic probe arm detection
  • Top/bottom measurement possible (software option)
  • Quick and easy calibration of the probe arms

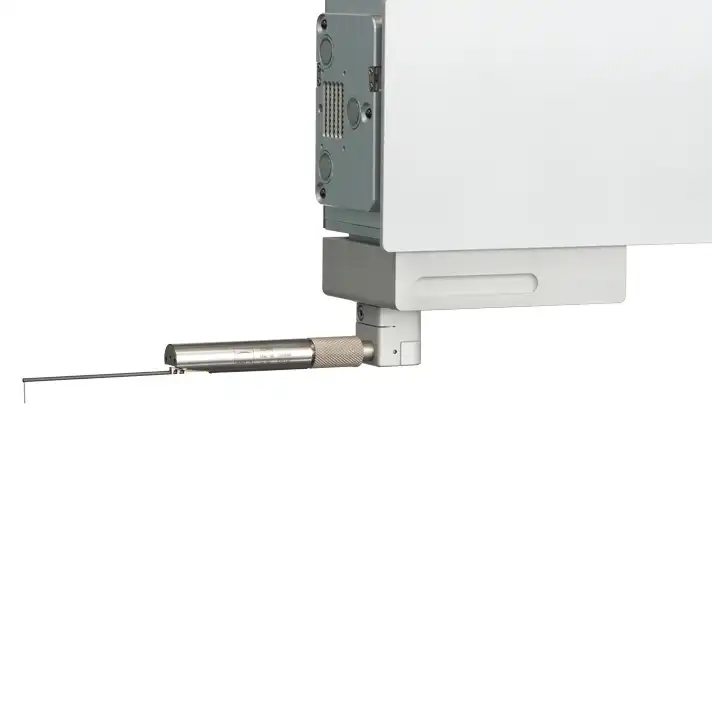

TKU400

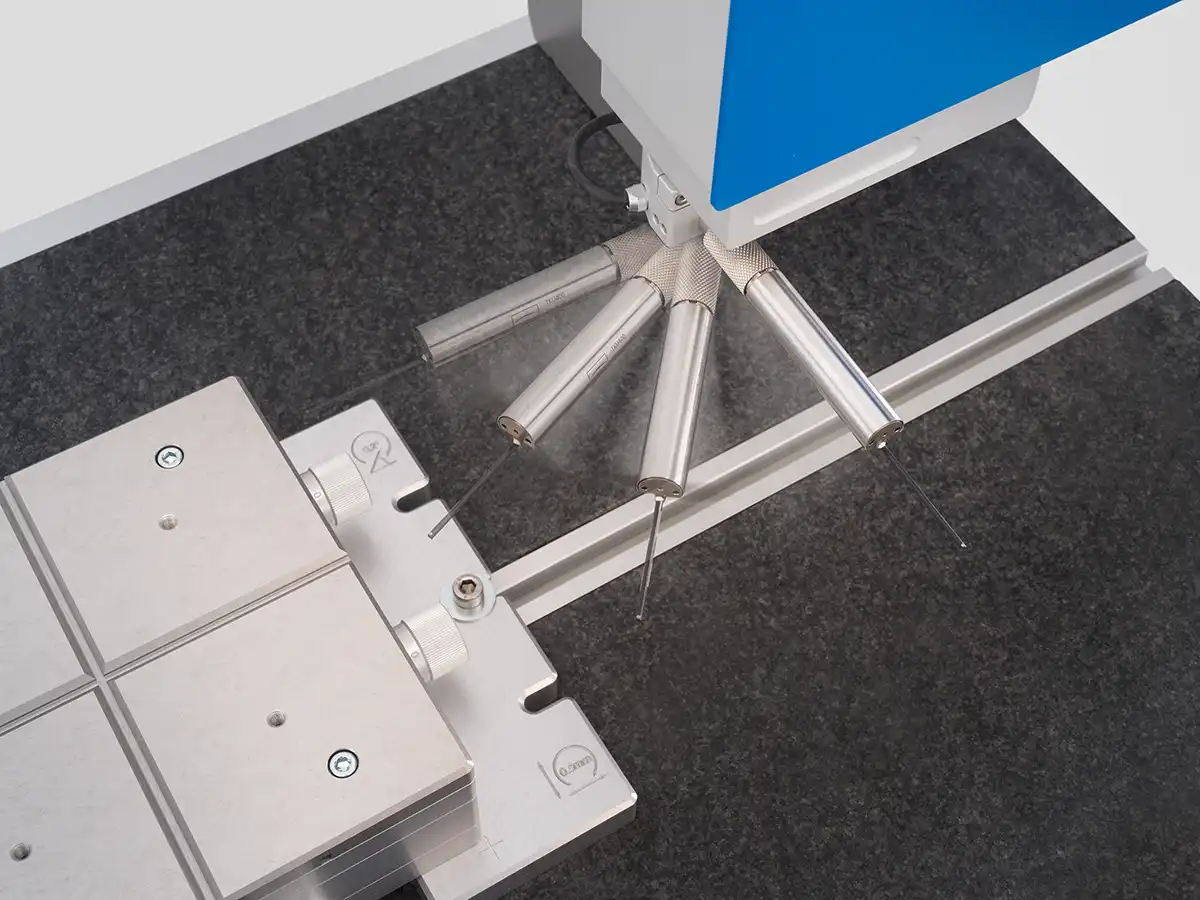

  • Simple changeover to transverse measurement
  • Highest resolution across the full measuring range
