Hommel Etamic – Visionline
Via CMOS camera sensors she devices of the Visionline series are able to find even the smallest defects on the tested surface. Cavities, porous sections and scratches can easily be detected and classified. High troughput allows for complete inspection with contant quality levels, which guarantees the gapless quality documentation of your products. The easy to use software EVOVIS vision provides the clear analysis of testing data.
Fully integrated surface inspection
- Automatic inspection of surfaces
- Image capturing during movement without rotation
- High testing speed
- Newest CMOS camera sensor technology
- Type-specific inspection
- Parameterizing with practical windows
- Integration in your automated processes
- Test report as aggregated statistics
- Defect detection from 0.1 mm
- Cycle times from 3 seconds
Typical use cases
- Crankcase
- Cylinder liner
- Gearbox housing
- Cylinder head
- Steering box
Models
| Type | Description |

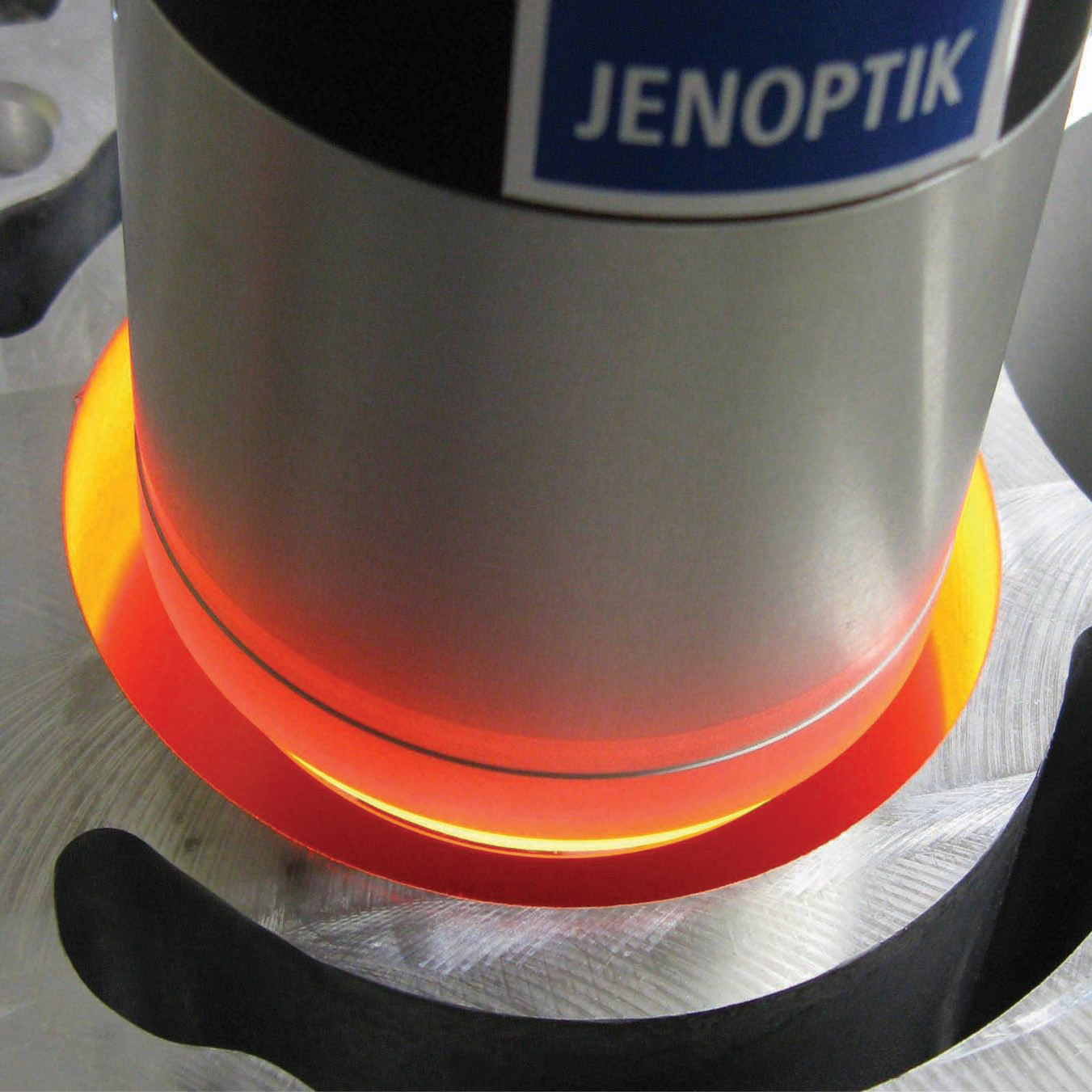

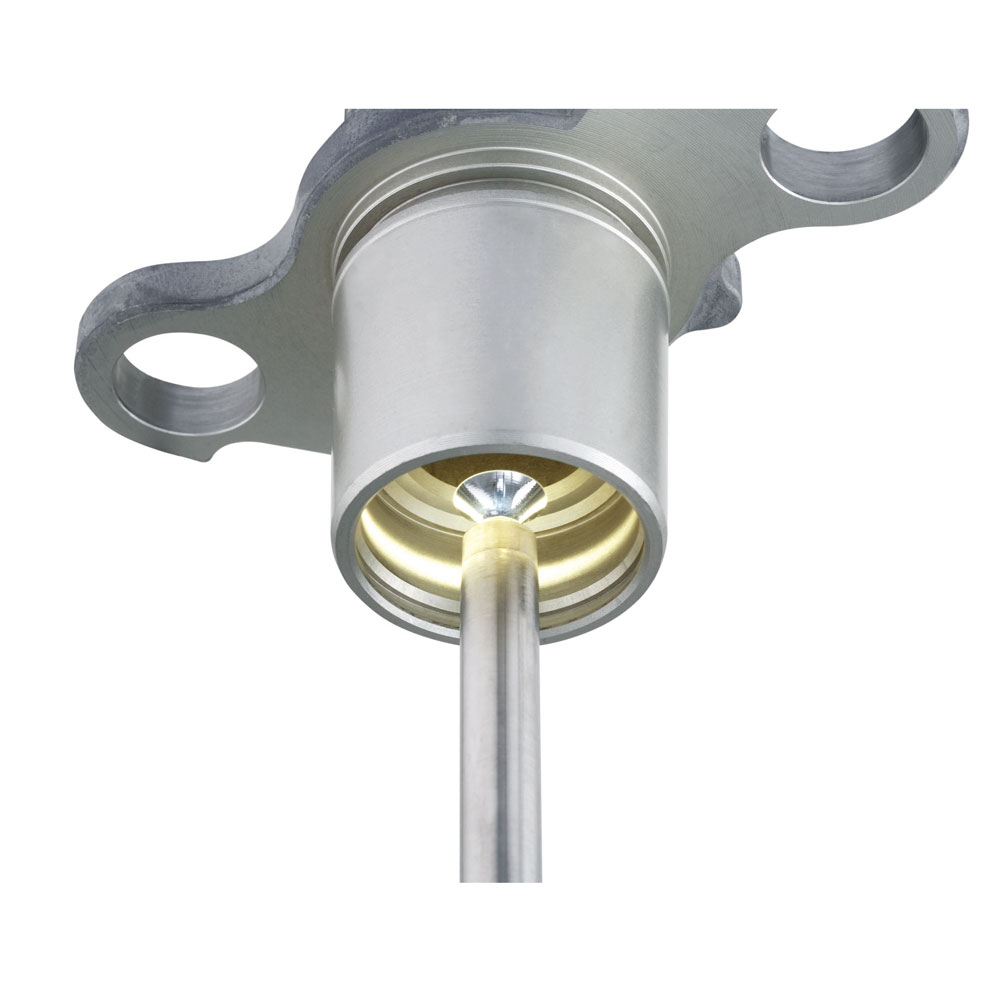

| IPS B 10 | Image-producing Boring inspection Diameters 14–50 mm |
| IPS B 100 |
Image-producing |
| IPS B 100 3D | Image-producing Boring inspection Creation of a point cloud with high point density for 3D analysis of a surface |
| F 200 3D | Image-producing Diameters 200 mm, >200 mm scalable Creation of a point cloud with high point density for 3D analysis of a surface |
| IPS GAP | Image-producing Inspection of valve gaps |
| CCS R 50 | Chromatic confocal – optical point sensor Diameters 68–110 mm To determine the micro structure |
| CCS C 100 | Chromatic confocal – optical point sensor Diameters 68–110 mm To determine undercut contours |
Related products
Videos
Bore inspection – quick and easy
See how with the IPS series even the smallest bores can be inspected.
Fast and automated measurements
Take a look at the IPS B100 in this automated setup.
