Hommel-Etamic – Waveline W10
The portable roughness measuring device W10 is a very reliable instrument for the checking and inspection of surface qualities directly within manufacturing. Thanks to a lot of new features like a colour touchscreen, transverse probing, vertical and upside down measurement, integrated roughness standard and many others the possible applications are greatly extended.
Features:
- Features all roughness parameters

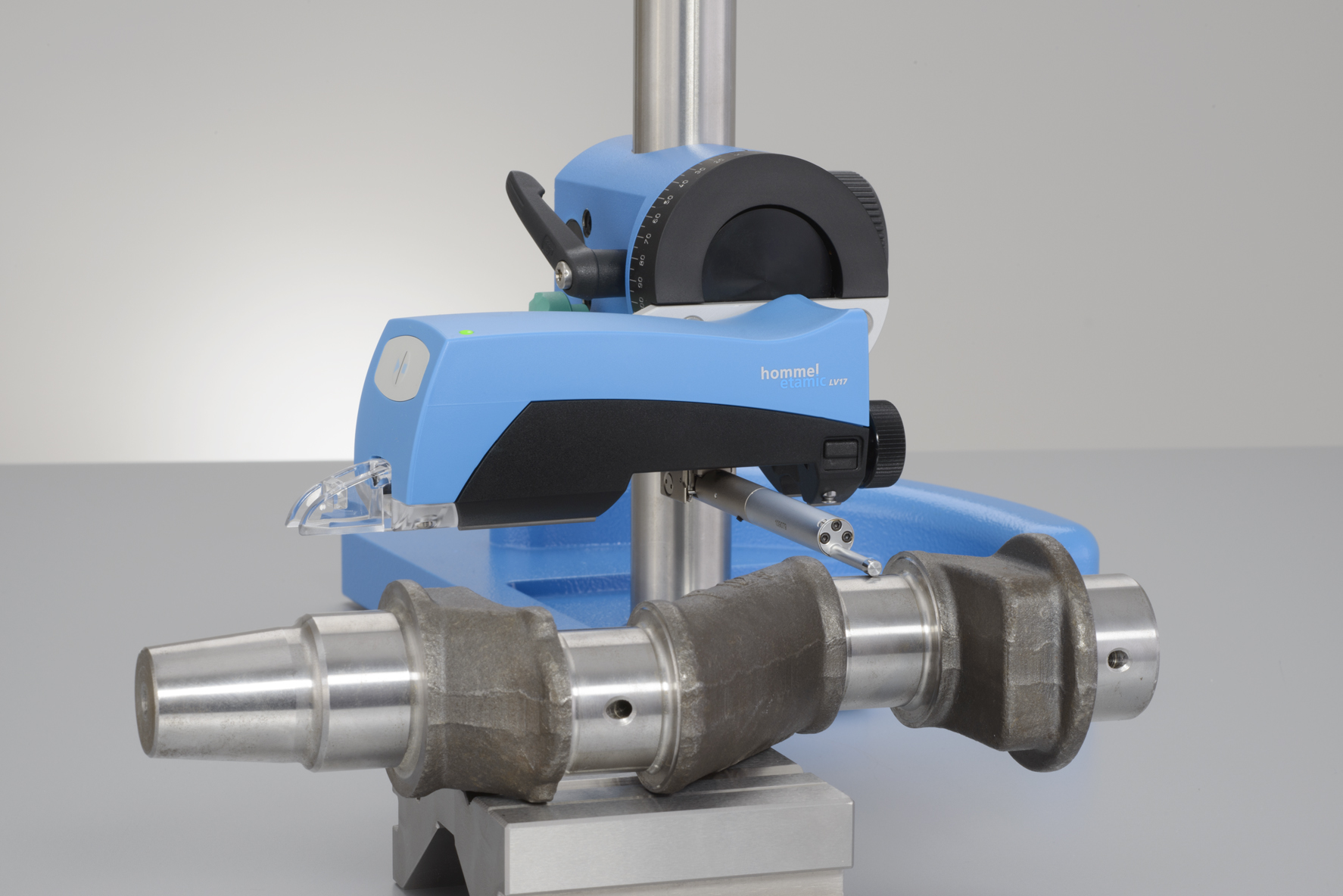

- Transverse/vertical/upside down measurement
- Mobile measurement on small shafts
- Adjustable height via integrated tripod legs and v-groove
- Comfortable analysis with latest generation PC software
- Colour touchscreen

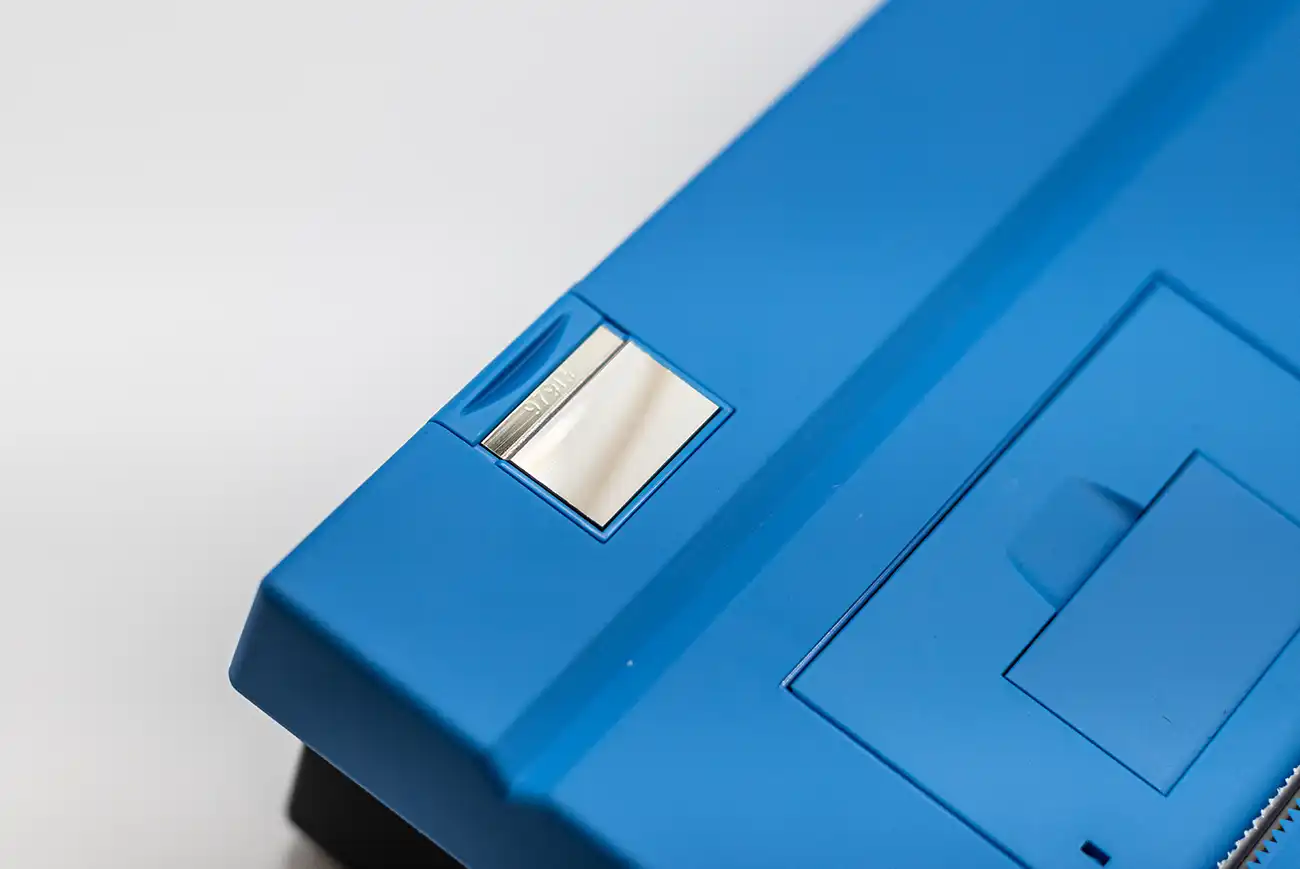

- Integrated roughness standard and thermal printer
- Various supports and granite measuring plates
Specifications
| Measuring range | 320 µm (-210/+110 µm) |
| Probe | Inductive skid probe T1E: 2 µm/90° |
| max. testing line | 17.5 mm |
| Testing line according to ISO/JIS (mm) | 1.5/4.8/15 |
| Interface | USB, Bluetooth |
| Traverse unit | LV17 |
Videos
Roughness measuring made easy
See on various examples how you can get the highest precision out of your Waveline W10.
