Targetless tracking

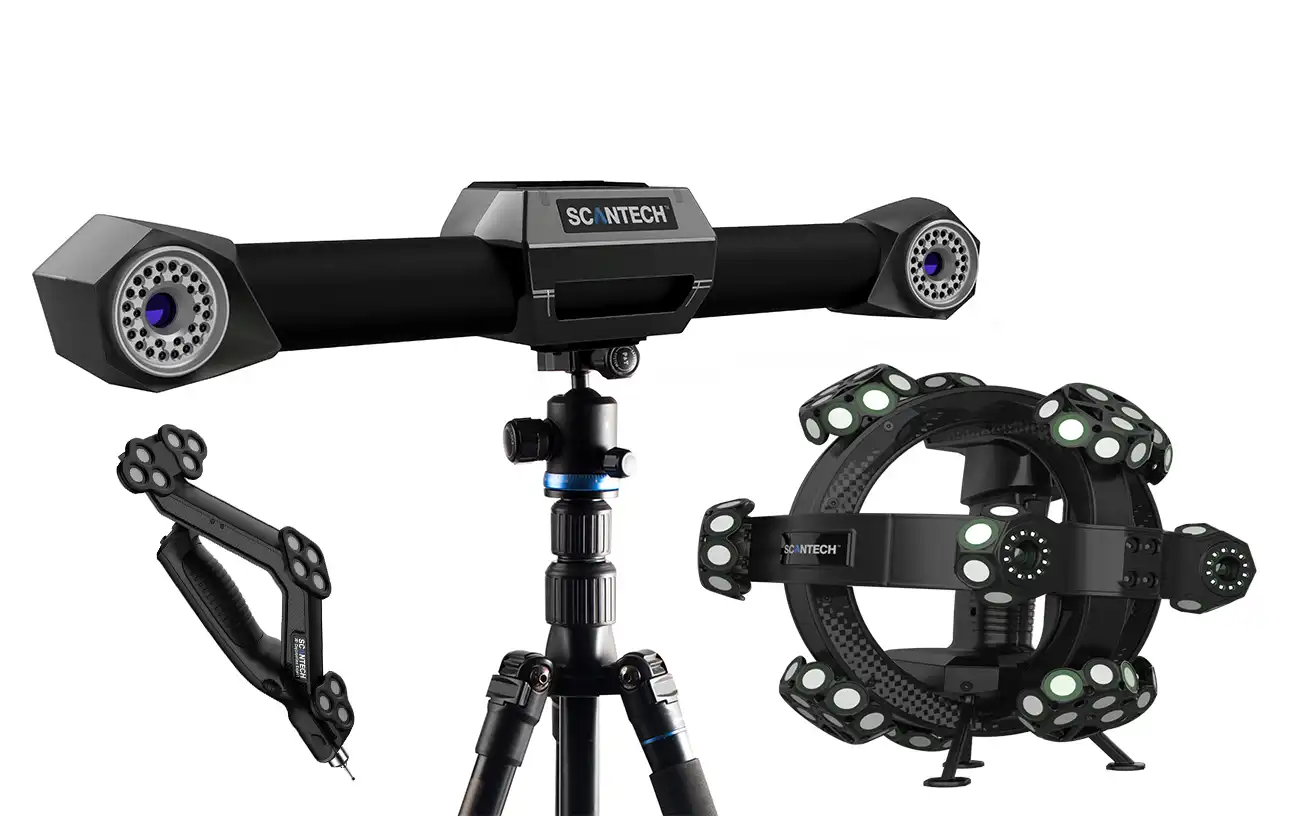

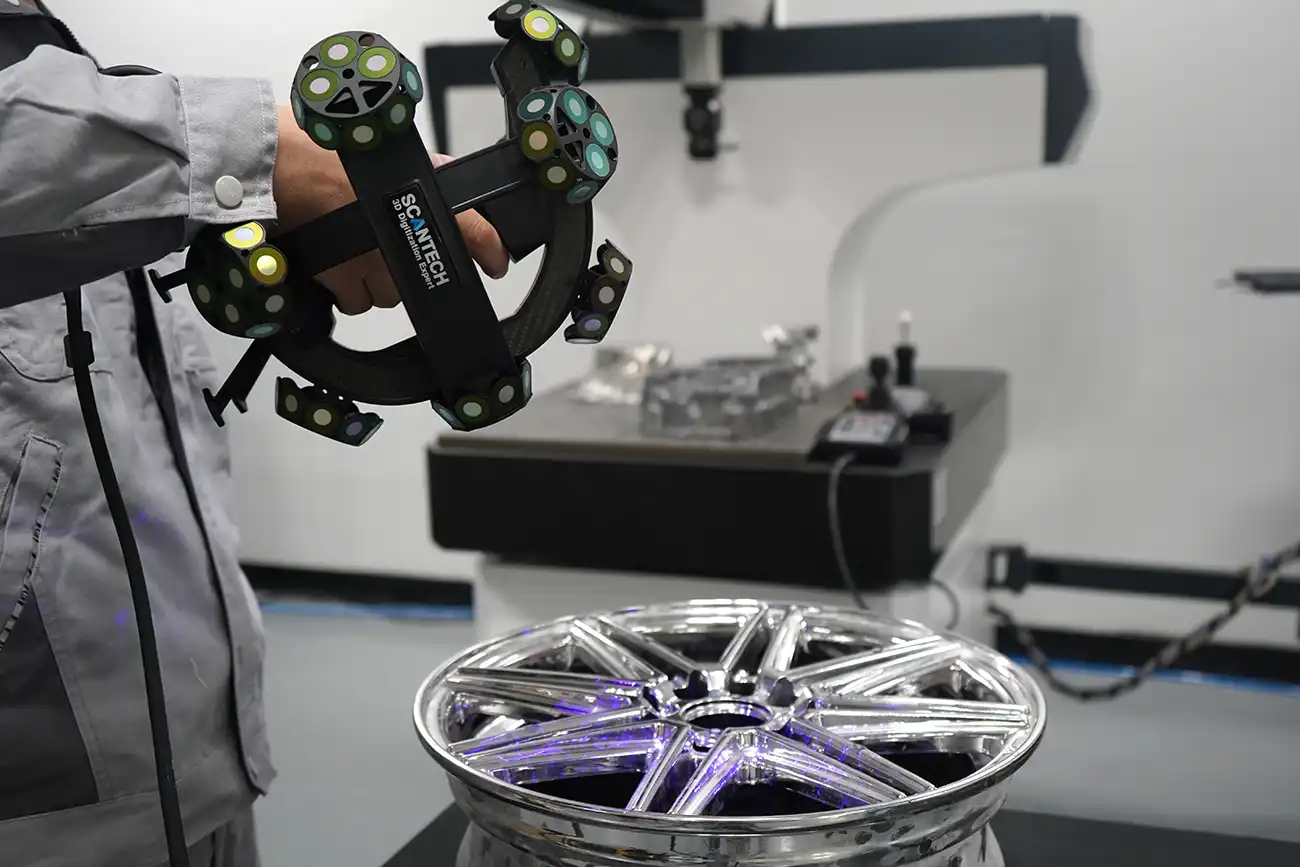

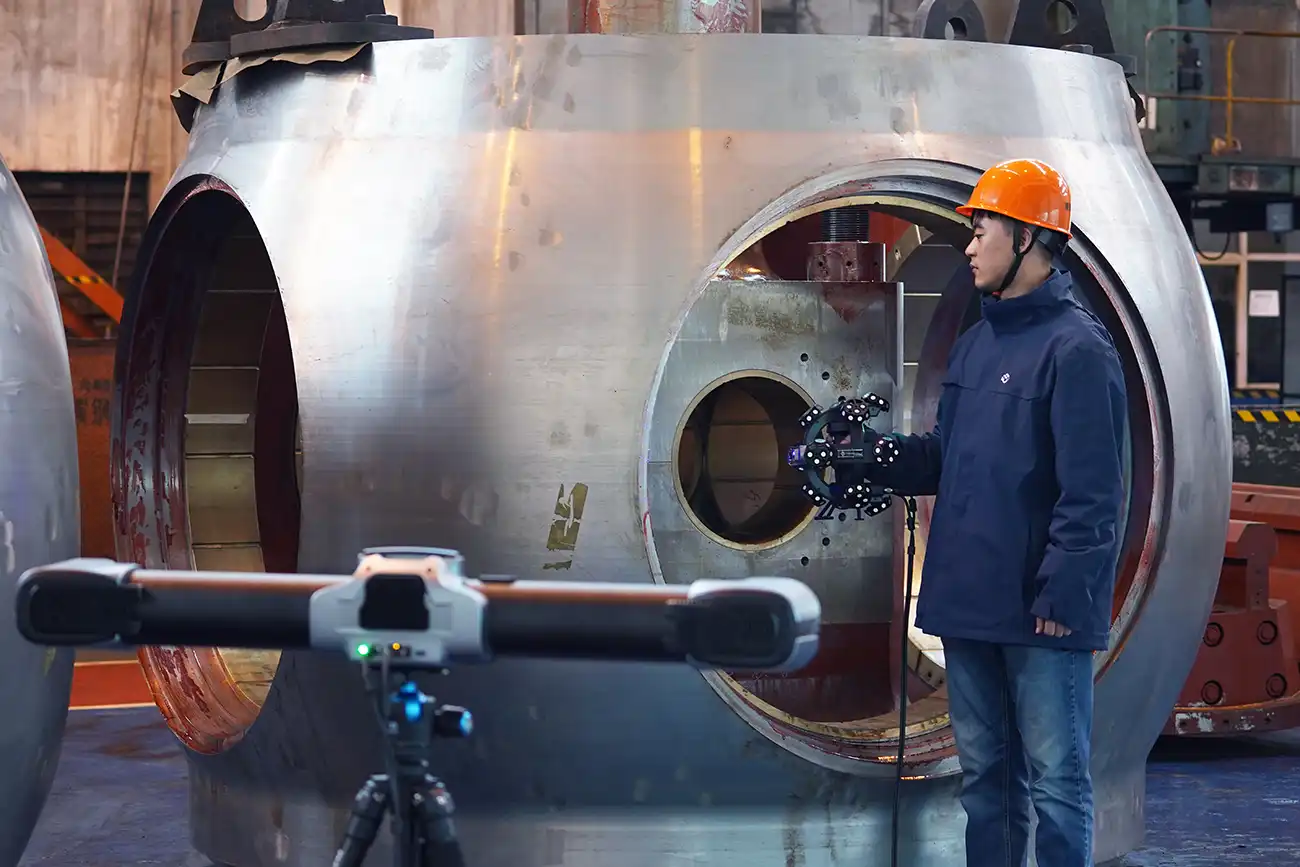

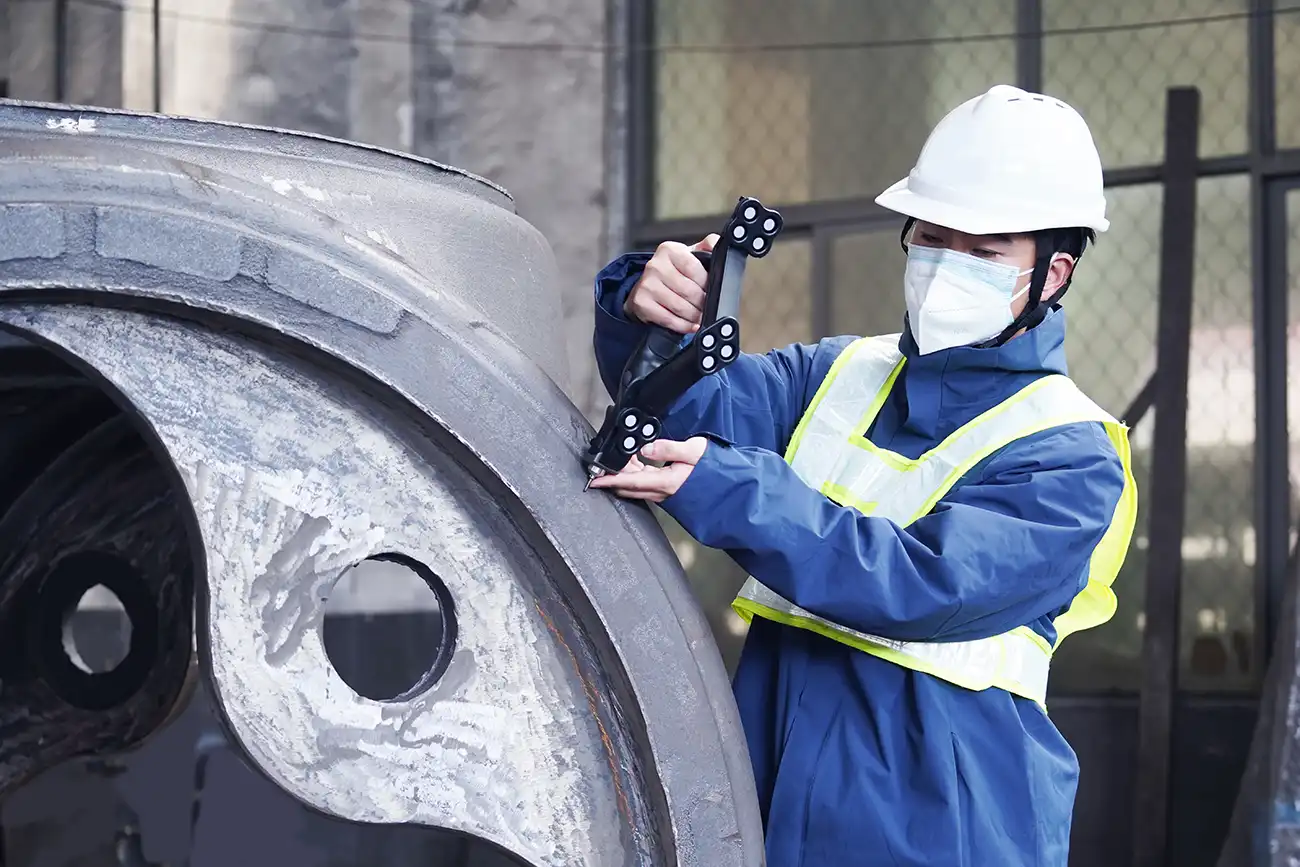

The elaborated optical tracking system allows the instant scanning of even complex structures without the need of sticking targets. Trough extension with various modules the applications for the TrackScan-P  can be greatly extended. It can be paired with an auxiliary light module to inspect circles, grooves, and machined holes of stamping parts. With a portable T-Probe, it conducts precise contact measurements for edges, circles, and grooves. When being mounted onto a robot arm, it is an optimal choice for intelligent and automated 3D inspection.

The laser innovation

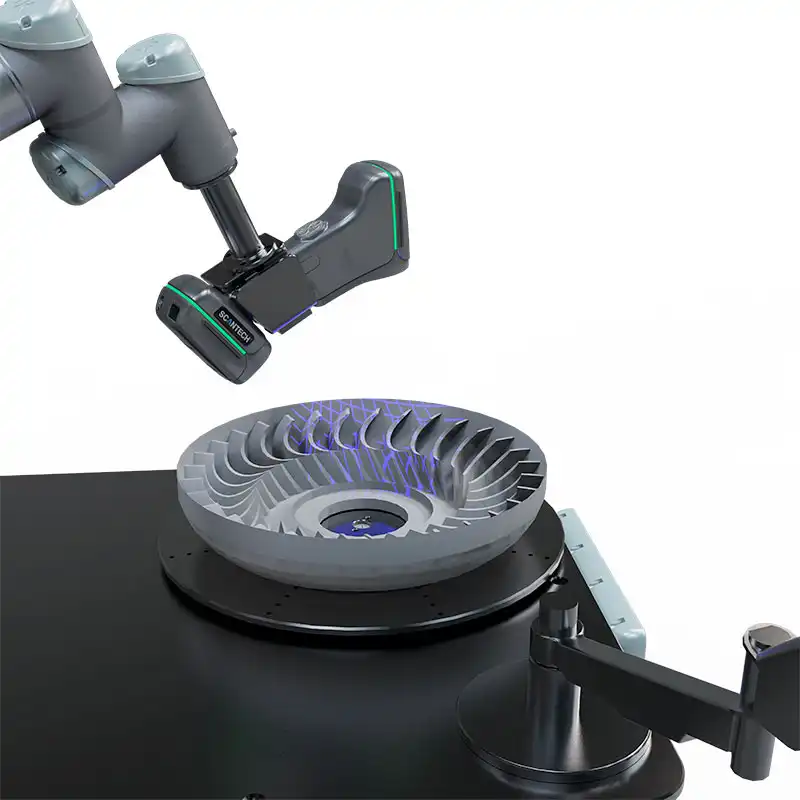

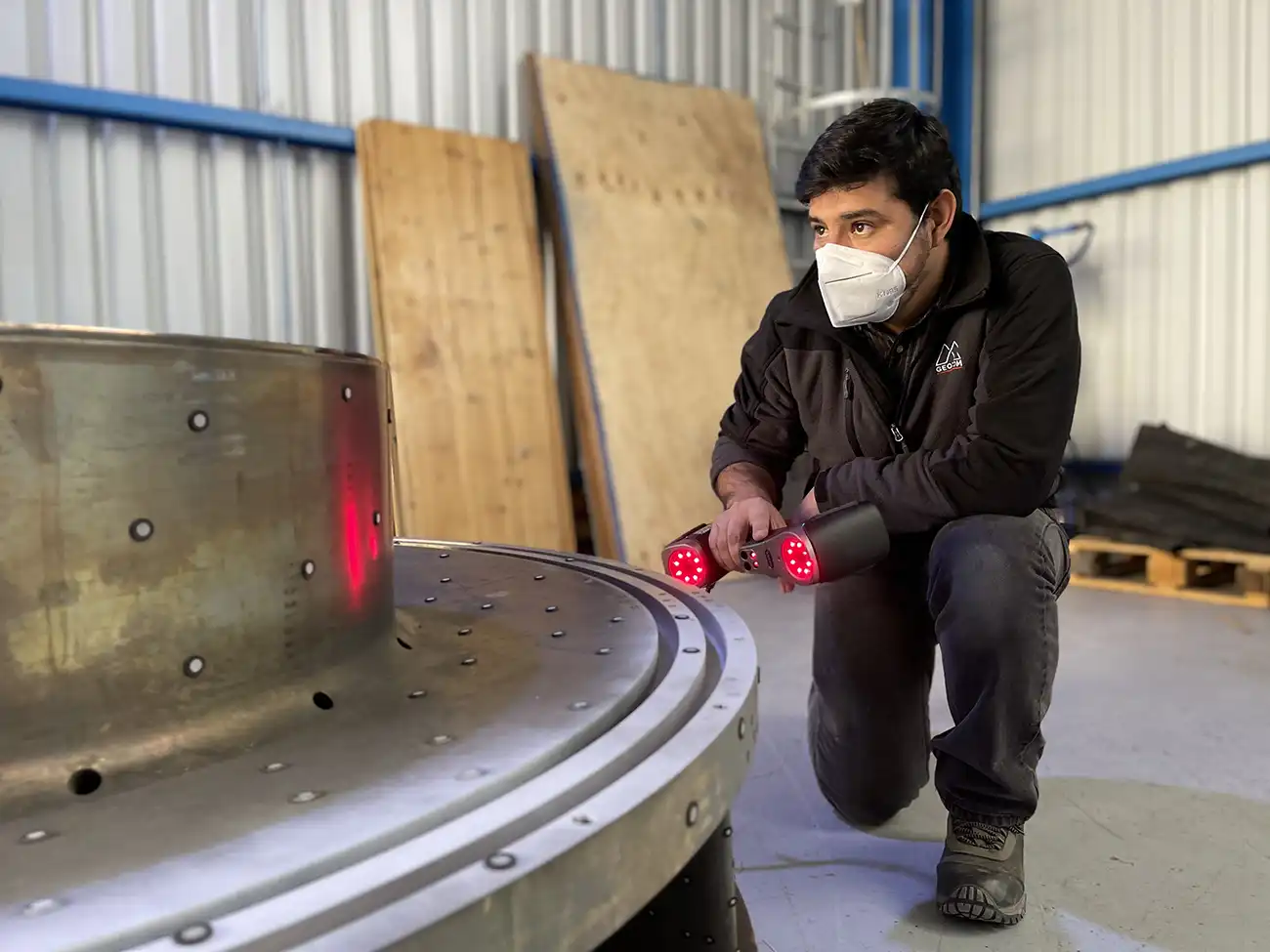

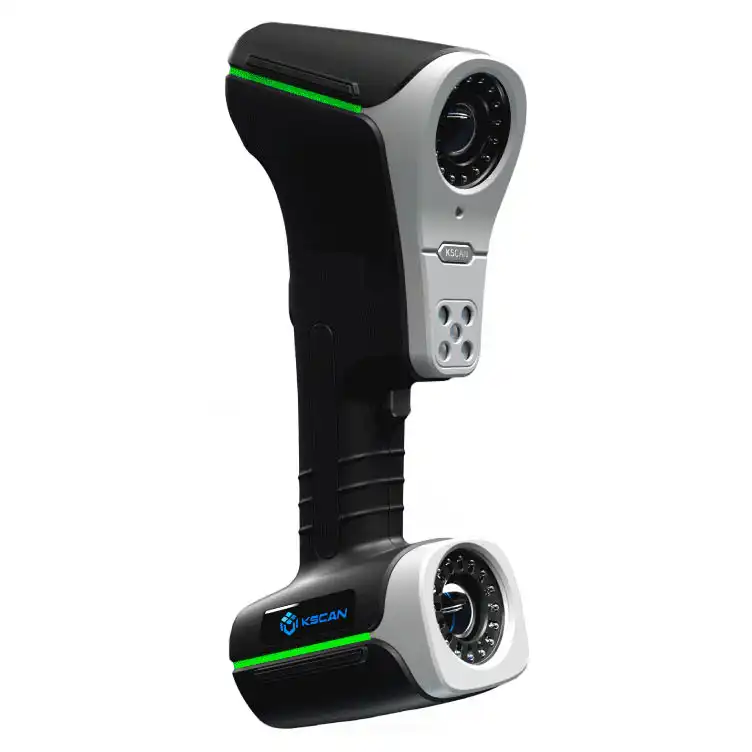

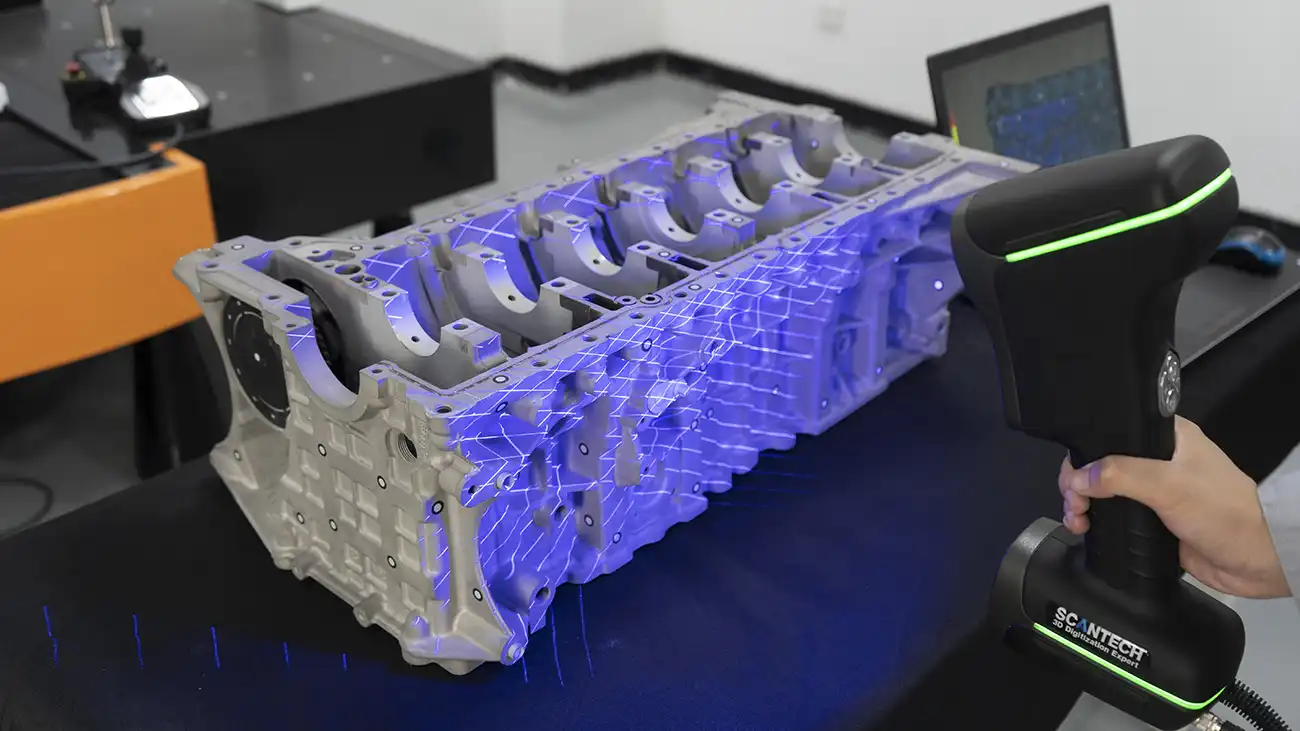

The KSCAN-Magic series stands for a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area and depth of field greatly optimizes the 3D measurement workflow and accelerates the product time-to-market. To obtain data on hard-to reach or complex surfaces, the KSCAN-Magic can be equipped with a portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurements.

Handy and performant

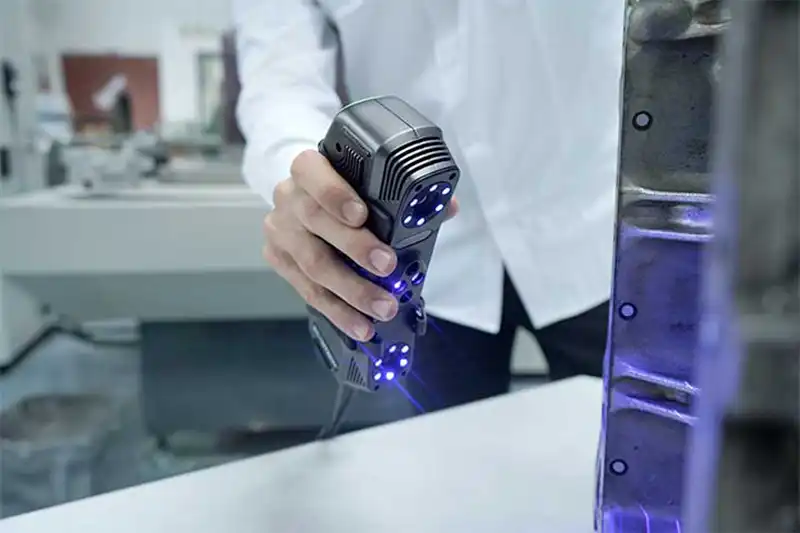

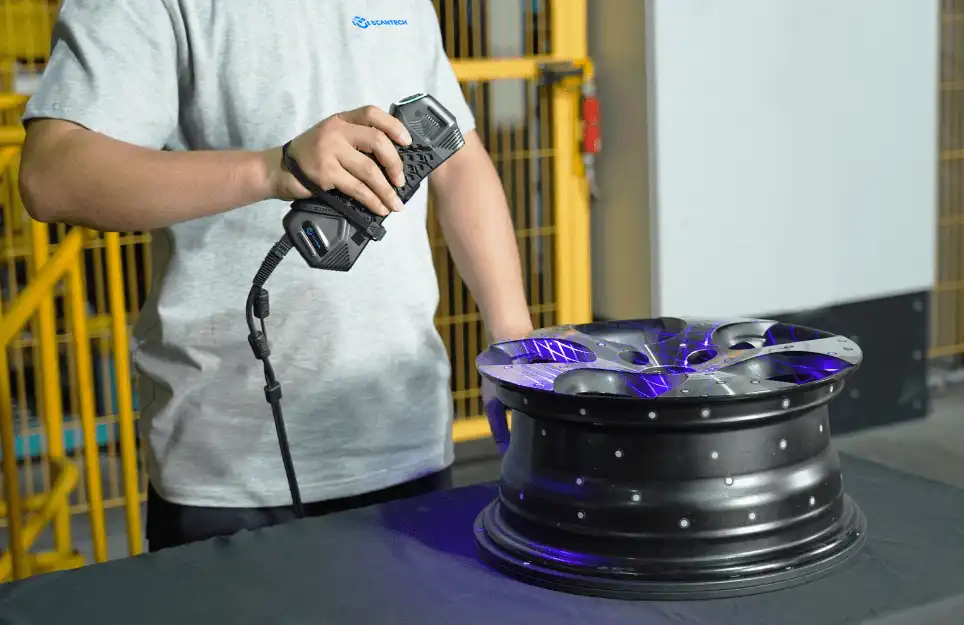

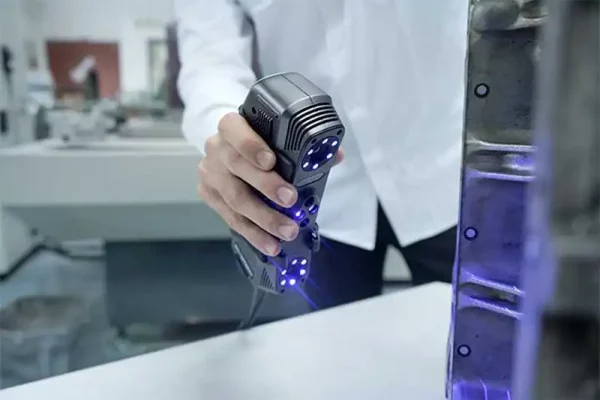

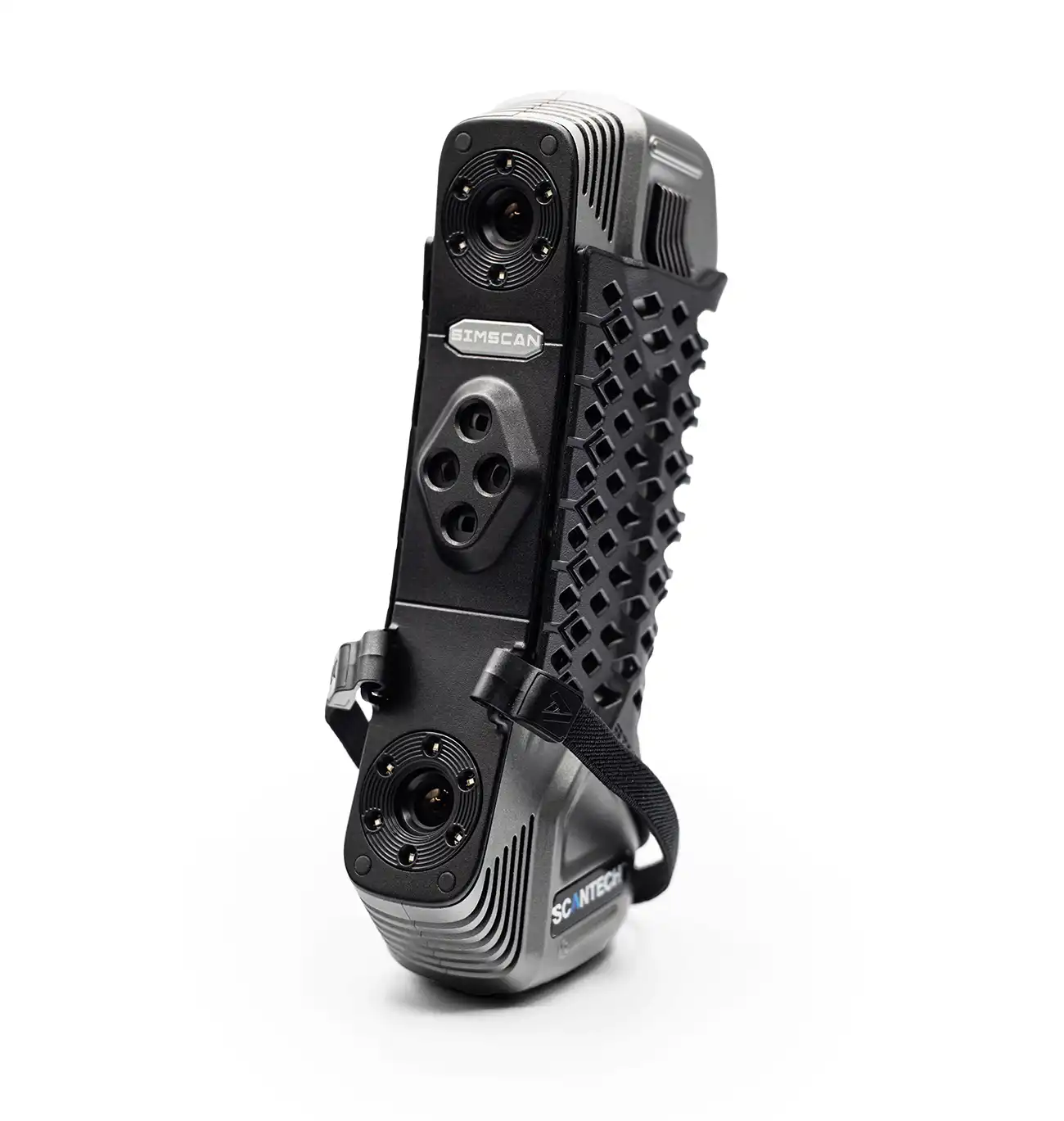

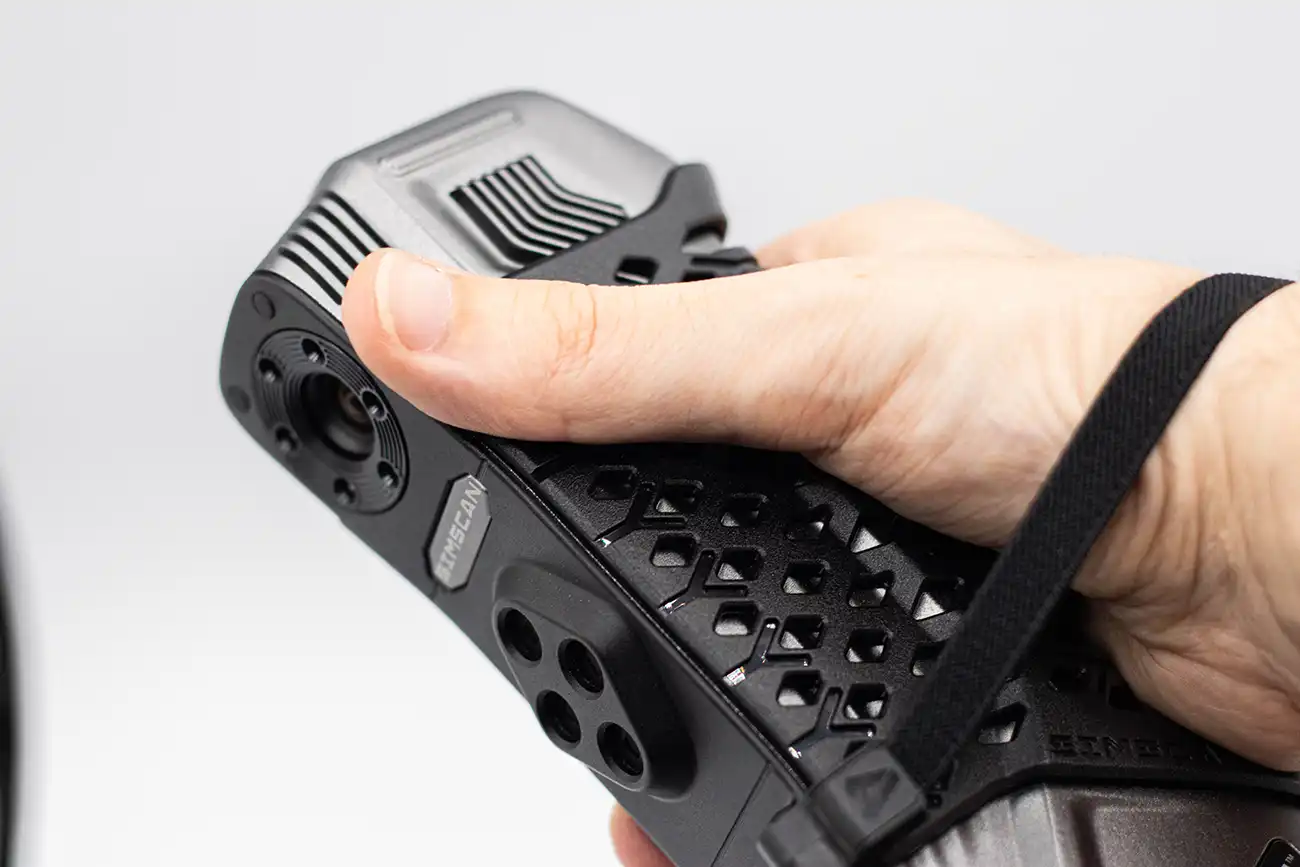

SIMSCAN performs high-quality 3D scanning regardless of any restrictions from the working environment. It is ideal for 3D scanning both narrow spaces and large-scale parts. Users can accurately capture every detail of an objects and construct 3D models in a very short amount of time with the help of this metrology-grade 3D measurement instrument.

In combination with the powerful integrated software ScanViewer the system greatly enhances the performance of every quality assurance workflow.
